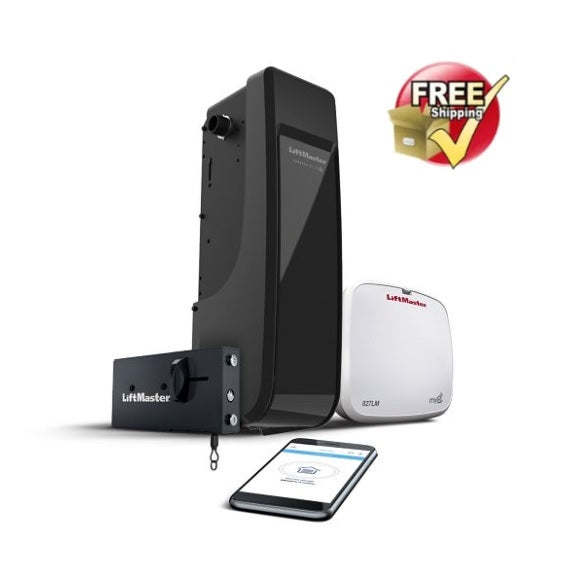

Our most advanced wall-mount opener optimizes garage ceiling space overhead, opening up the possibilities to what the garage can become. Fully equipped with must-have features including built in Wi-Fi® for smartphone control, myQ® Remote LED lights (up to 16), Integrated Battery Backup and the Automatic Garage Door Lock. (Smartphone not included.)

No Cable Tension Monitor and Lifts up to 850 lbs.

Connectivity

• Built-in Wi-Fi and Bluetooth for the easiest way to connect the garage.
• myQ mobile app lets users receive alerts and control the opener from anywhere.
• myQ Remote LED lights (up to 16) can be placed anywhere to provide bright, maintenance-free illumination.
• myQ integrated health diagnostics.

Dimensions

• Opener head: 21.5" H x 7.5" W x 7.9" L
• Max. Door Height: 14ft.
• Max. Door Width: 18ft
• Headroom clearance required: 3in from Center of Torsion Bar
• Max. Door Weight: 850lbs


Performance

• Wall-mount design and quiet DC motor eliminate noise and vibrations through the ceiling and provides smooth operation.
• Heavy-lifting power operates doors up to 850 lbs.
• Integrated battery backup ensures access even when the power’s out.
• Warranty lifetime motor, 5-year parts, 1-year battery and accessories.

Safety & Security

• Included automatic garage door lock makes the garage door virtually impenetrable.
• Timer-to-close automatically closes the door after a preset amount of time.
• Security+ 2.0® sends a new code with every remote click.
• Motion detector automatically turns on the light.
• The Protector System® auto-reverses the door if there’s an obstruction.

Included Accessories:

• myQ Remote LED Light (827LM)
• Operates automatically with the opener and works with the myQ App.
• Integrated Battery Backup (485LM)
  Powers up the opener when the power’s out.
• Automatic Garage Door Lock (841LM)
  Deadboldts the garage door automatically every time it closes.
• 3-Button Remote Control (893MAX)
  Operates up to three garage door openers or myQ Light accessories. Compatible with all LiftMaster Garage Door Openers manufactured since January 1993.
• Smart Control Panel® (880LMW)
• LCD display enables simple programming and adjustment of settings.

Optional Accessories:

• Video Keypad (VKP1-LM)
  Easy to install, the my Q Smart Garage Video Keypad.
• Mini Universal Remote Control (374UT)
  Compact and portable to provide quick, easy garage access.
• Wireless Keyless Entry (878MAX)
  Provides convenient, secure access from outside the garage with a 4-digit PIN.
