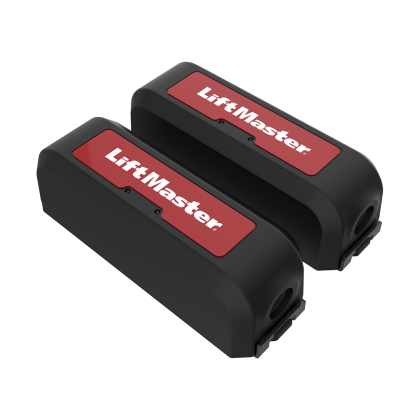

LiftMaster LMWEKITU Monitored Wireless Edge Kit LiftMaster LMWEKITU Monitored Wireless Edge Kit

LiftMaster LMWEKITU Monitored Wireless Edge Kit is designed to connect wirelessly to the pressure-sensitive edge that stops and reverses gate when obstructed.

Watch Installation Video

The LMWEKITU Monitored Resistive Wireless Edge Kit comes with a transmitter, a receiver, two AA Lithium batteries, an interface board and mounting bracket hardware. This high-capacity edge system can handle two wired monitored edges per transmitter and four transmitters per receiver. Each transmitter features two open/close monitored edge input configurations. The system is easily installed with non-polarized edge inputs and the transmitter/receiver are easy to pair via smart button technology. Status LED indicates learned device or activated edge while integrated low-battery indicator on gate operator beeps with each activation when battery is low. Low-energy Bluetooth® technology is power efficient with two-year battery life.

Product Highlights:

• Part Number: LMWEKITU
• Sold as pair
• Compatible with LiftMaster Gate Operators with Burgundy Boards and LiftMaster
• Monitored Resistive Edges ONLY
• Meets 2016 UL 325 requirements
• Provides monitored entrapment protection solution
• Sensing distance up to 130 feet
• Protects up to 8 entrapment points
• Receiver accepts up to (4) transmitters
• Transmitter accepts up to (2) wired resistive edges
• Integrated diagnostics with 2016 UL 325 Gate Operator Speed Installation
• LED indicators provide Instant feedback: contacted or obstructed, and solid during learn process when transmitter is learned in
• Rated NEMA 4X to withstand tough outdoor environments
• Multi-channel Bluetooth® transmission eliminates interference
• Industry-leading low-energy Bluetooth® technology is power efficient with two-year battery life
• LMWEKITU Receiver compatible with LMWETXU Transmitter and L50 and S50 Monitored Resistive Edges

LMWEKITU INSTALLATION

LMWEKITU PRODUCT INFORMATION
