MH5011UR COMMERCIAL RIGHT-HANDED OPERATOR

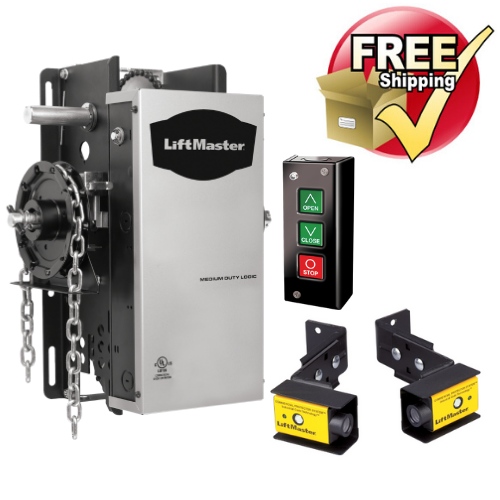

Hoist on right side of operator, picture shows left. The hand chain wheel cannot be switched on site. If you want the hoist on the left side of the operator you need MH5011UL

Description

Model MH is a Medium-Duty Logic hoist operator. It features an adjustable friction clutch, a standard solenoid brake, a high-starting torque motor, a compact design and an emergency chain hoist with an electric interlock. A safe and easy way to operate Industrial Sectional Doors with high or vertical lift.

Included Accessories

  • 3 Button Control Station
  • CPS-U Safety Photo Eyes - If the CPS-U safety photo eyes (included) are going to be installed in a wet location, like a carwash. The more suitable sensors for this application are the watertight CPS-UN4 photo eyes. Contact us to upgrade the sensors.

Optional Accessories

  • Compatible 315MHz Remotes and Keypad
  • LiftMaster 71-6023 Chain Tensioner is recommended to properly tension drive chain between operator shaft and door shaft
  • EXT-ANT Antenna Kit plus 86LM cable is needed to bring an additional antenna outside a steel building to increase radio reception
  • CPS-UN4 Watertight Safety Photo Eyes is needed for wet locations

Details

Item                                       Commercial Door Operator

Type                                      Hoist - Right Hand Mount

Max. Door Height (Ft.)        14

Max. Door Width (Ft.)          22

Shaft Size                              1 Inch

Motor Type                            Medium Duty

Motor HP                                ½

Voltage                                  115

Warranty                                2-year warranty

Owner's Manuals

MH5011U Installation Manual

MH5011U Repair Parts

MH5011U QuickStart Guide

MH5011U User

MH Electro-Mechanical
