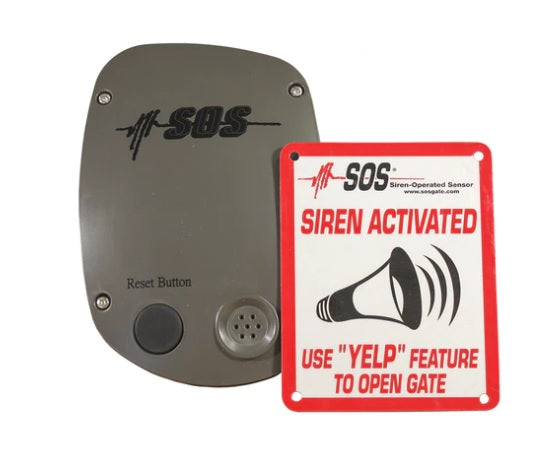

SOS12 Siren-Operated Sensor Emergency Access Vehicle Detector

In an emergency, the most important commodity is time and once the SOS12 Emergency Access Siren-Operated Sensor detects a "YELP" siren, the gate will open within 3 seconds. It is the most cost-effective option for emergency access to homes or businesses and allows emergency responders to easily pass through gates without delay by eliminating the step of punching codes, finding keys, or ramming into the gate. It features a NEMA 4 enclosure with large gaskets for extra protection and a front-facing microphone for faster siren detection.

Includes:

SOS 12 Siren Operated Sensor
Reflective Sign
CD Recording "Yelp" Siren

TECHNICAL REQUIREMENTS OF THE SOS:

Voltage: DC 9 to 24 volts or AC 9 to 16 volts
Amp draw: 0.1 mA (milliamp) when listening and when activated has a 25 mA draw during the trigger
Wire gauge: 18-22 AWG (not included)
Temperature: The SOS remains functional in temperature ranging from -30 to 120 degrees Fahrenheit
Potentiometer: You can easily adjust the sensitivity of the unit with the potentiometer dial. The necessary decibel level varies by the unit's sensitivity setting:
- Sensitivity set at 0: The unit will not trigger at any decibel level
- Sensitivity set at 3: The unit will trigger at 125 decibels
- Sensitivity set at 5: The unit will trigger at 105 decibels
- Sensitivity set at 7: The unit will trigger at 95 decibels
- Sensitivity set at 9: The unit will trigger at 80 decibels
Programming: The SOS is equipped with six switches to customize the sound that will open the gate and the length of time the gate remains open after being triggered by an emergency vehicle. You can keep the gate open for just one vehicle to enter, hold for 15 minutes or if you prefer, latch it open until the reset button is pushed.
Reset Button: SOS units have two reset buttons that perform the same function. One on the exterior of the enclosure and one on the inside of the enclosure on the circuit board.
Siren Test: The SOS includes a CD recording of an emergency responder "yelp" siren so you can test the unit and adjust the sensitivity settings to your preference. It is recommended that you get a live siren to test your unit twice a year.
Reflective Sign: Each unit ordered comes with a 4" x 5" sign which clearly tells emergency responders your gate is protected by SOS.
