Description

Designed for both gated communities and commercial buildings, the Universal Receiver and accompanying remote controls feature Security+ 2.0™ technology. Safeguards access to property with an encrypted signal to offer extended range with Security+2.0. Property managers can support and manage multiple access points, such as the main gate, tenant and visitor doors, commercial doors, and even parking entrances, all with a single remote control solution that offers superior range and security.

Weather-resistant for outdoor mounting requirements
Provides convenient access to gated communities, industrial facilities, and commercial sites all with a single transmitter solution
Three channels provide expanded remote control capacity: Channel 1 - 50 remotes, Channel 2 - 20 remotes, Channel 3 - 20 remotes
Multiple remote control options available to provide secure access from the safety and convenience of a vehicle
Compact design fits most gate and commercial door operators
Compatible with 811LM, 813LM, and all MAX remote controls
Power: 12-24VDC or 12-24VAC
Relay Outputs: Output channels - 1 FORM C and 2 FORM A relays
Security+ 2.0™ Rolling Code and Encrypted DIP
Operational temperature from -35 to 65 degrees C; Storage temperature from -40 to 85 decrees C
Compliant with FCC Part 15
1-year warranty

860LM Owners Manual

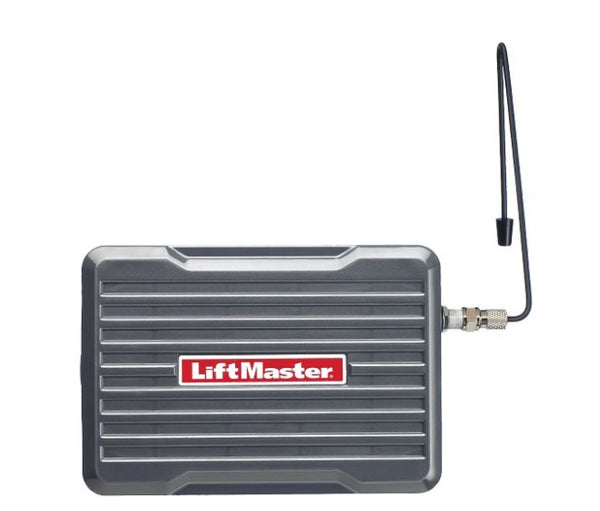

LiftMaster 860LM Universal Gate and Garage Door Weather Resistant Receiver LiftMaster 860LM Universal Gate and Garage Door Weather Resistant Receiver
