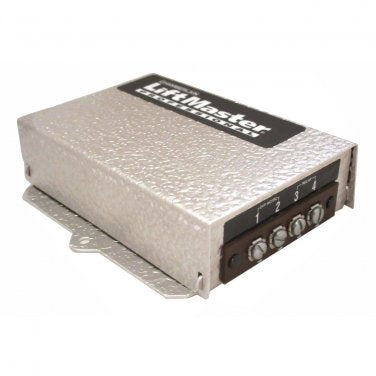

Liftmaster 412HM 390MHz Gate & Garage Door Opener Receiver

The Liftmaster 412HM receiver is suitable for 1 automatic gate or garage door opening application. Includes rolling code technology. This unit is FCC certified at 390MHz and works with all Liftmaster Security+ remote control transmitters.

Standard Features

External 8" whip antenna, wire and instructions included
390MHz Security+® rolling code technology and/or billion code
12VDC or 18 - 35VAC/DC jumper selectable
Momentary or constant contact, jumper selection
2-piece aluminum case with detachable cover
High security memory stores up to 15 Security+® remote control or keyless entry codes
Compatable remotes 971LM, 973LM and all MAX remotes
Compatable keypads 877MAX
3-year warranty

If you need increased range the antenna can be connected to the receiver with model 86LM coaxial cable extension antenna kit. You can then mount the Antenna up to 15 ft away from the receiver depending on your requirements.

If receiver terminals 1 and 2 are not used in the installation because power is not available, transformer model 85LM is required and is available.

Liftmaster 412HM Manual
